Aberrant muscles at the Guyon’s canalthe fibers

Georgi P. Georgiev^1*, Lazar Jelev¹ and Plamen Kinov²

¹Department of Anatomy, Histology and Embryology, Medical University Sofia, Sofia, Bulgaria

²Department of Orthopedics and Traumatology, University Hospital Queen Giovanna – ISUL, Sofia, Bulgaria

*Corresponding Author:

Georgi P. Georgiev, MD
Department of Anatomy, Histology and Embryology, Medical University Sofia blvd. Sv. Georgi Sofiiski 1 BG-1431 Sofia, Bulgaria
Tel: +359 2 9172636
E-mail: georgievgp@yahoo.com

Date of Received: September 26^th, 2009

Date of Accepted: March 14^th, 2010

Published Online: April 28^th, 2010

© Int J Anat Var (IJAV). 2010; 3: 67–69.

Keywords

abductor digiti minimi muscle, variation, Guyon’s canal

Introduction

At the wrist the ulnar nerve passes through a fibroosseous tunnel known as “Guyon’s canal” or “distal ulnar tunnel” [1]. The clinical importance of this tunnel is that it may become a site of ulnar nerve compression [1-8]. Variety of causes has been determined for such compression including trauma, lipoma, false aneurysm of the ulnar artery, ganglion cyst and rarely aberrant muscular slips [2,4,8-11].

This paper demonstrates a detailed description of two variant abductor digiti minimi muscles of the hand. The relationship of these muscles to the neurovascular bundle in Guyons’s canal may explain their possible association with ulnar nerve entrapment at the region of the wrist.

Case Report

During routine anatomical dissections, two cases of unusually structured abductor digiti minimi muscle were discovered. The variant findings were observed in the left hypothenar regions a 41-year-old (Case 1) and 53-year-old (Case 2) Caucasian male cadavers. A careful dissection of these muscles was performed to determine their structure, including the attachment points and innervation.

Case 1

The variant abductor digiti minimi was composed of three well-defined portions: lateral, intermediate and medial (Figure 1). The medial portion originated from the pisiform bone; the intermediate portion arose from canalthe fibers forming anteriorly the Guyon’s canal; the lateral portion, started from the middle of the medial part of the flexor retinaculum. The three portions fused in a common muscular body that attached to the ulnar side of the base of the fifth proximal phalanx. From clinical point of view, the most interesting portion was the intermediate one, which passed over the ulnar artery and nerve in the Guyon’s canal.

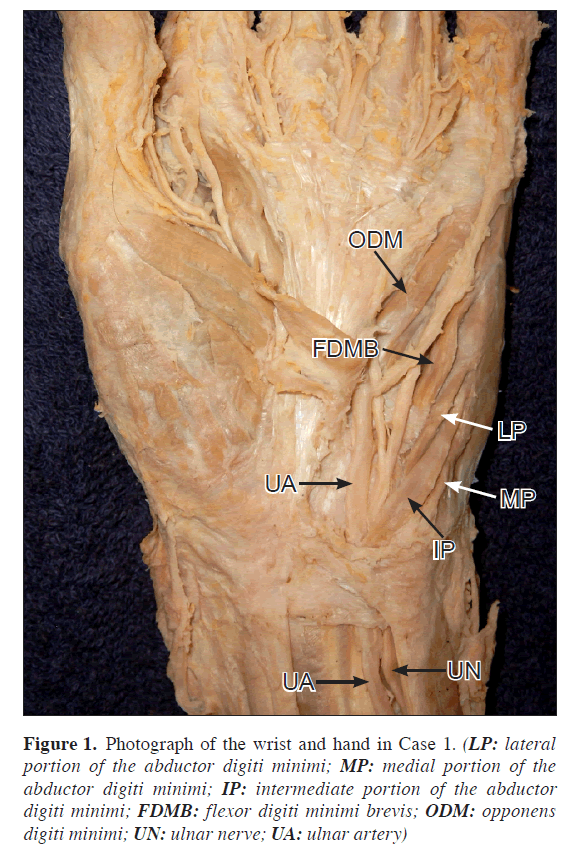

Figure 1: Photograph of the wrist and hand in Case 1. (LP: lateral portion of the abductor digiti minimi; MP: medial portion of the abductor digiti minimi; IP: intermediate portion of the abductor digiti minimi; FDMB: flexor digiti minimi brevis; ODM: opponens digiti minimi; UN: ulnar nerve; UA: ulnar artery)

Case 2

The body of the abductor digiti minimi was composed of two well-defined portions: lateral and medial (Figure 2). The medial portion originated from the pisiform bone; the lateral portion started from the upper part of the flexor retinaculum. The two portions fused in a common muscular body that attached to the ulnar side of the base of the fifth proximal phalanx, as in previous case. The lateral portion passed over the ulnar artery and nerve in the Guyon’s canal. Therefore, this one could be of interest by clinicians.

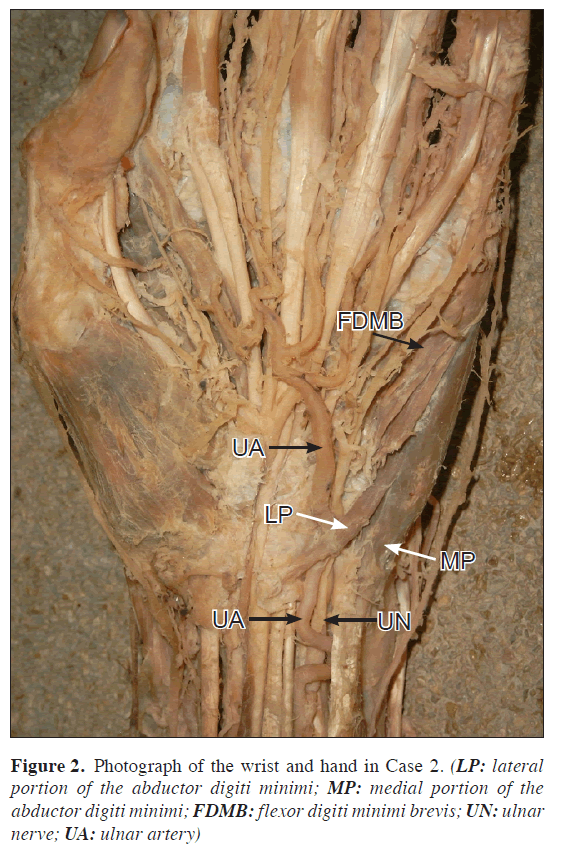

Figure 2: Photograph of the wrist and hand in Case 2. (LP: lateral portion of the abductor digiti minimi; MP: medial portion of the abductor digiti minimi; FDMB: flexor digiti minimi brevis; UN: ulnar nerve; UA: ulnar artery)

The innervation of the variant abductor digiti minimi muscles was from the ulnar nerve. The division and course of the ulnar artery was as usual.

Discussion

The Guyon’s canal extends from the palmar carpal ligament at the proximal edge of the pisiform bone to the hamulus of the hamate bone, a distance of approximately 4 cm [12]. Usually, the ulnar nerve and artery pass through the canal, which otherwise contains fat only [1]. According to De Smeth, all structures narrowing the distal ulnar tunnel or occupying some space within this tunnel could cause compression neuropathy of the ulnar nerve [3]. An anomalous hypothenar muscle in Guyon’s canal is considered to be one of the causes of ulnar tunnel syndrome [2-5]. In this report we present two cases of variant abductor digiti minimi muscles, reducing the space in the distal ulnar tunnel, as a predisposing factor to ulnar nerve compression.

Anomalous muscles in Guyon’s canal are common [10]. The variations of the abductor digiti minimi are the most frequently described among the hypothenar muscles [9,10]. Georgiev et al. summarized different variants of this muscle: absence, origins from the fascia of the forearm, palmaris longus, fascia of the flexor carpi radialis, intermuscular fascia, flexor carpi ulnaris and flexor retinaculum, second head, three origins, fusion with the flexor digiti minimi brevis and present a case of a deep abductor-flexor of the little finger [9].

In clinical practice anomalous muscle may present as a mass at the wrist that is initially diagnosed as a ganglion or lipoma [13]. However, rarely some variations belonging to abductor digiti minimi may lead to serious complaints in certain professional groups [11]. Symptoms of weakness, intrinsic muscle wasting, and sensory loss are believed to result from ulnar nerve compression in the confined space of Guyon’s canal [11]. Turner and Caird explained the nerve entrapment with some provoking factors, such as injury, muscle hypertrophy or repetitive minor trauma [14]. However, Harvie et al., disagree with this theory and supposed that the symptomatology correlates with muscle size, which is probably genetically predetermined [10]. There are ulnar nerve compression syndromes provoked by anomalous muscles [2,6-8,11]. Additionally to nerve compression, an aberrant muscle may be also associated with thrombosis of the ulnar artery [15]. In the cases of ulnar nerve and artery compression, ultrasound imaging and/or MRI could be used as imaging modalities that clearly identify the variant muscle in Guyon’s canal [1,6,10].

References

1. Zeiss J, Jakab E, Khimji T, Imbriglia J. The ulnar tunnel at the wrist (Guyon’s canal): normal MR anatomy and variants. AJR Am J Roentgenol. 1992; 158: 1081–1085.
2. Al-Qattan MM. Ulnar nerve compression at the wrist by the accessory abductor digiti minimi muscle: wrist trauma as a precipitating factor. Hand Surg. 2004; 9: 79–82.
3. De Smet L. Median and ulnar nerve compression at the wrist caused by anomalous muscles. Acta Orthop Belg. 2002; 68: 431–438.
4. Gloobe H, Pecket P. An anomalous muscle in the canal of Guyon (a possible ulnar nerve compression). Anat Anz. 1973; 133: 477–479.
5. Madhavi C, Holla SJ. Anomalous flexor digiti minimi brevis in Guyon’s canal. Clin Anat. 2003; 16: 340–343.
6. Ruocco MJ, Walsh JJ, Jackson JP. MR imaging of ulnar nerve entrapment secondary to an anomalous wrist muscle. Skeletal Radiol. 1998; 27: 218-221.
7. Schjelderup H. Aberrant muscle in the hand causing ulnar nerve compression. J Bone Joint Surg Br. 1964; 46: 361.
8. Shea JD, McClain EJ. Ulnar nerve compression syndromes at and below the wrist. J Bone Joint Surg Am. 1969; 51: 1095–1103.
9. Georgiev GP, Jelev L, Surchev L. Undescribed variant muscle – “deep abductor-flexor” of the little finger, in relation to ulnar nerve compression at the wrist. Ann Anat. 2007; 189: 276–282.
10. Harvie P, Patel N, Ostlere SJ. Prevalence and epidemiological variation of anomalous muscles at Guyon’s canal. J Hand Surg Br. 2004; 29: 26–29.
11. Jeffery AK. Compression of the deep palmar branch of the ulnar nerve by an anomalous muscle. Case report and review. J Bone Joint Surg Br. 1971; 53: 718–723.
12. Gross MS, Gelberman RH. The anatomy of the distal ulnar tunnel. Clin Orthop Relat Res. 1985; 196: 238–247.
13. Lipscomb PR. Duplication of hypothenar muscles similating soft-tissue tumor of the hand. Report of a case. J Bone Joint Surg Am. 1960; 42: 1058–1061.
14. Turner MS, Caird DM. Anomalous muscles and ulnar nerve compression at the wrist. The Hand. 1977; 9: 140–142.
15. Moss DP, Forthman CL. Ulnar artery thrombosis associated with anomalous hypothenar muscle. J Surg Orthop Adv. 2008; 17: 85–88.
