Positioning value of macular ganglion cell complex (mGCC) in optic pathway-related neuro-ophthalmology

Received: 13-Jul-2021 Accepted Date: Jul 27, 2021; Published: 03-Aug-2021

Citation: Zhang W, Sun X, Peng X. Positioning value of macular ganglion cell complex (mGCC) in optic pathway-related neuro-ophthalmology . J Neurol Clin Neurosci 2021;5(3):1-4.

This open-access article is distributed under the terms of the Creative Commons Attribution Non-Commercial License (CC BY-NC) (http://creativecommons.org/licenses/by-nc/4.0/), which permits reuse, distribution and reproduction of the article, provided that the original work is properly cited and the reuse is restricted to noncommercial purposes. For commercial reuse, contact reprints@pulsus.com

Abstract

In optic pathway-related neuro-ophthalmologic diseases, the morphological characteristics of mGCC thickness demonstrated characteristic changes that are similar to that of visual field, and mGCC analysis had value of objective positioning analysis. In this retrospective case study, a total of 32 patients with optic pathway-related neuro-ophthalmology diseases were enrolled. A Swept-Source Optical Coherence Tomography (SS-OCT) was used to scan and analyze the morphological characteristics of the mGCC thickness and the Peripapillary Retinal Nerve Fiber Layer (pRNFL) thickness in these patients, which were compared with the visual field changes at the corresponding phase to analyze their relationship.

Keywords

Macular ganglion cell complex (mGCC), Neuro ophthalmology, Swept source optical coherence tomography (SS -OCT)

Introduction

With the development of ophthalmic diagnostic techniques, Swept- Source Optical Coherence Tomography (SS-OCT) is widely used in the diagnosis and treatment of neuro-ophthalmologic diseases due to its rapid process, high-resolution and non-invasiveness [1-3]. This technique in turn provides favorable conditions for observing the retinal ganglion cells in the optic nerve and macular area [4,5]. Most of the previous OCT studies focused on observing the thickness of the optic nerve fiber layer present around the optic disc and the thickness of the retinal ganglion cells in the macular area, [6-9] while there is a lack of studies describing the morphological characteristics of the ganglion cells in the macular area. Hence, in the present study, SS-OCT was used to examine the topographical map of Macular Ganglion Cell Complex (mGCC) thickness and the topographic map of the nerve fiber thickness around the optic disc. The probability of the changes in mGCC atrophy and thinning pattern combined with visual field examination were adopted to analyze the changes in imaging the optic pathway-related neuro-ophthalmologic diseases. We aimed to observe the changes in the optic nerve of the above diseases from a new imaging perspective, thereby deepen the understanding of the pathological and physiological changes of these diseases.

Materials and Methods

Optic pathway-related neuro-ophthalmologic diseases mainly included optic nerve, optic chiasm, optic tract, optic radiation, inflammation of the central nervous system, tumor, trauma, degeneration and congenital dysplasia and other diseases. Ganglion cell complex-optic nerve is the pivotal pathway that connects the retina and the brain [10]. The nerve conduction begins in the ganglion cell complex (dendrites-inner plexiform layer, ganglion cell layer, axon-neural fiber layer) and nerve fiber bundle, converging at the lamina cribiosa till the optic nerve. The bilateral optic nerves form optic chiasm in the suprasellar region, and then divide into bilateral optic tracts, exchanging the neurons at the Lateral Geniculate Nucleus (LGN). These in turn form optic radiation that projects towards the fissura calcarina, and finally the visual information is completed by the visual center in the occipital region. As the optic nerve fibers travel in clear regularity, the nasal retinal nerve fibers (including the nasal part of the macula) of each eye intersect at the optic chiasm till the contralateral tract, while those at the temporal side do not intersect [11]. The inferior retinal nerve fibers are located in the medial optic tract after passing through the optic nerve and the optic chiasm.

Hence, the optic nerve fibers rotate 90° when they enter the optic tract from the optic nerve and the optic chiasm. The subnasal retinal nerve fibers pass through the optic chiasm, but travel forward in the contralateral optic nerve (Wilbrand's knee) before merging with contralateral inferotemporal noncrossing- fibers and entering the optic tract [12]. Therefore, the diseases at different parts of optic pathway-related neuro-ophthalmology have regularity, and manifest as visual field changes with different regularities. Meanwhile, the visual field examination is subjective, and is largely influenced by the visual function, psychological factors and cognitive coordination ability of the patients. The macular region accounts for 50% of ganglion cells, and are arranged regularly [13-15]. The normal mGCC manifests as a ring structure, which is a yellow ring, while the mGCC in subnormal status or in the swelling period was manifested as a red ring. The common atrophic forms of mGCC included: 1/4 quadrant atrophy, upper and lower atrophy based on horizontal demarcation, binasal or concurrent homonymous atrophy or complete atrophy by taking the midperpendicular bisector as demarcation (Figure 1).

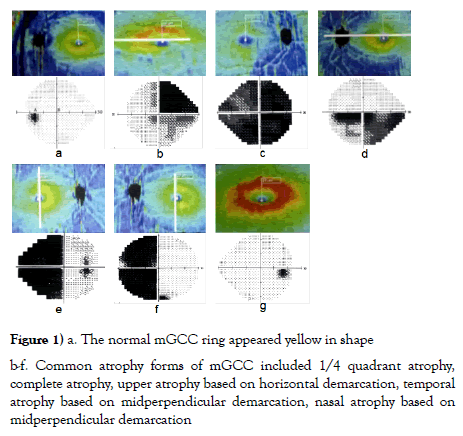

Figure 1) a. The normal mGCC ring appeared yellow in shape b-f. Common atrophy forms of mGCC included 1/4 quadrant atrophy, complete atrophy, upper atrophy based on horizontal demarcation, temporal atrophy based on midperpendicular demarcation, nasal atrophy based on midperpendicular demarcation

The visual field, mGCC atrophy and lesion positioning of the 32 patients with optic pathway-related neuro-ophthalmology mainly showed (1) upper visual field hemianopia based on monocular horizontal demarcation, mGCC was manifested as lower atrophy, and the lesion could be diagnosed as optic neuropathy at the anterior lamina cribiosa. In case of monocular complete blindness, the mGCC was manifested as complete atrophy, and the lesion could be considered as optic neuropathy from posterior lamina cribiosa to anterior optic chiasm (such as unilateral retrobular optic neuritis, optic canal fracture). (2) For bitemporal hemianopia, the bilateral mGCC rings showed nasal atrophy by taking midperpendicular bisector as demarcation, and the lesion was located at the optic chiasm. In terms of bitemporal hemianopia and one eye crossing the midperpendicular bisector, the bilateral mGCC rings were manifested as nasal atrophy by taking the midperpendicular bisector as demarcation and one eye crossed the midperpendicular bisector, and the lesion was considered as optic chiasm lesion biased towards one eye. (3) For homonymous hemianopia without macular sparing, mGCC was manifested as nasal atrophy in one eye and temporal atrophy in another eye by taking the midperpendicular bisector as demarcation, and the patients were diagnosed as lesion from the posterior optic chiasm till before the middle of the optic radiation. For cases with both eyes of hemianopia towards 1/4 upper or lower quadrant, without the macula sparing, the mGCC ring was manifested as atrophy at 1/4 of the lower nasal side in one eye and atrophy at 1/4 of the lower temporal side in the other eye, and the lesion was located at the anterior optic radiation. In terms of homonymous hemianopia with macular sparing, mGCC was manifested as nasal atrophy in one eye and temporal atrophy in another eye by taking the midperpendicular bisector as demarcation, and the lesion was located at the posterior optic radiation and further. For homonymous hemianopia with macular sparing and retain of contralateral 30-degree crescent, mGCC was manifested as nasal atrophy in one eye and temporal atrophy in another eye by taking the midperpendicular bisector as demarcation, with macular sparing, and the lesion was located in the middle of the calcarine fissure. If the visual field was symmetric and ipsilateral central hemianopia, mGCC appeared as nasal atrophy in one eye and temporal atrophy in another eye by taking the midperpendicular bisector as demarcation, with macular sparing, and the lesion was positioned at the occipital pole. Meanwhile, if the visual field was symmetric and ipsilateral hemianopia, with the meniscal defects at the contralateral eye, the mGCC appeared as nasal atrophy in one eye and temporal atrophy in another eye by taking the midperpendicular bisector as demarcation, with macular sparing, and the lesion was positioned at the anterior calcarine fissure. (4) Altered visual field and normal mGCC ring were found in patients with short onset time, either in the latent period or early onset, and with descending optic neuropathy of trans-neuronal lesion after optic radiation that had not induced mGCC injury, wherein the lesion positioning was relied on the visual field and MRI (Figure 2).

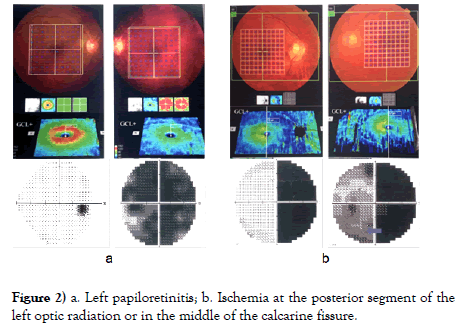

Figure 2) a. Left papiloretinitis; b. Ischemia at the posterior segment of the left optic radiation or in the middle of the calcarine fissure.

Results and Discussion

Through clinical diagnosis and treatment, we found that the ganglion cells were distributed in the macular region also and were presented in precise horizontal, vertical and quadrant regularity. Specifically, they manifest as unilateral mGCC ring atrophy and thinning or mGCC atrophy at the upper and lower half side based on horizontal demarcation for the lesion at anterior optic chiasm, the mGCC atrophy and thinning at half of the bilateral nasal sides based on midperpendicular demarcation for the lesion at optic chiasm, and the mGCC atrophy with or without macular sparing at homonymous side or 1/4 quadrant based on midperpendicular demarcation for lesion at posterior optic chiasm. The combination of MRI and 90-degree field of view should be performed to analyze the accurate positioning of the visual pathological lesions at the posterior optic chiasm. The results showed that the visual tract lesions as well as lesions at the anterior and the middle of the optic tract were not accompanied by macular sharing, while the lesions at the posterior optic radiation and the subsequent calcarine fissure were accompanied by macular sparing. The mGCC showed atrophy and thinning at 1/4 quadrant below the same name for lesions at the anterior ring of optic radiation, while showed atrophy and thinning at 1/4 quadrant above the same name for lesions in present in the medial optic radiation. In calcarine fissure lesions, the mGCC showed semi-asymmetric atrophy in the same name with macular sparing based on midperpendicular demarcation, while appeared symmetric ipsilateral hemianopia under 90-degree field of view for lesions in the middle of calcarine fissure, with macular sparing and contralateral crescent sparing. The mGCC showed a crescent defect in the contralateral eye under the 90-degree field of view for lesions in anterior calcarine fissure, while manifested as symmetric and ipsilateral central hemianopia (Figure 3) under 90-degree field of view for lesions at the occipital pole.

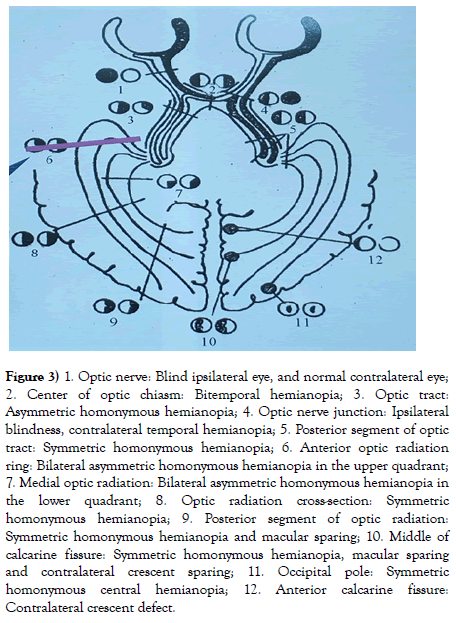

Figure 3) 1. Optic nerve: Blind ipsilateral eye, and normal contralateral eye; 2. Center of optic chiasm: Bitemporal hemianopia; 3. Optic tract: Asymmetric homonymous hemianopia; 4. Optic nerve junction: Ipsilateral blindness, contralateral temporal hemianopia; 5. Posterior segment of optic tract: Symmetric homonymous hemianopia; 6. Anterior optic radiation ring: Bilateral asymmetric homonymous hemianopia in the upper quadrant; 7. Medial optic radiation: Bilateral asymmetric homonymous hemianopia in the lower quadrant; 8. Optic radiation cross-section: Symmetric homonymous hemianopia; 9. Posterior segment of optic radiation: Symmetric homonymous hemianopia and macular sparing; 10. Middle of calcarine fissure: Symmetric homonymous hemianopia, macular sparing
and contralateral crescent sparing; 11. Occipital pole: Symmetric homonymous central hemianopia; 12. Anterior calcarine fissure: Contralateral crescent defect.

The visual field of pre-beam disease, the mGCC and the pRNFL damage evolution are divided into three stages: (1) Subnormal eyes at the preclinical or latent period showed normal vision and field of view, with mGCC and pRNFL swelling. (2) Subnormal eyes at the beginning of the disease lasted for 2-3 weeks, with abnormal vision and field of view, and mGCC and pRNFL swelling. The visual field changes and mGCC swelling do not coincide during this period. (3) Mid-term progression and separation period lasted for 2-3 weeks after the onset, with the occurrence of mGCC atrophy, but swollen pRNFL. The vision as well as the visual field was improved when compared with those at the early stage of the disease. The change of visual field in this period was basically consistent with the change of mGCC atrophy. Stabilization and atrophy period showed pRNFL atrophy, which usually lasted for more than 6-8 weeks after the onset. Generally, the disease discontinued to progress and tended to stabilize after 3 months, and then the visual acuity was improved and the visual field was also stabilized. These changes are better than those at the initial stage, but generally do not recover to the original normal levels. At this stage, the change in visual field coincides with changes in mGCC and pRNFL atrophy. Functional changes of ganglion cells (visual field changes) occur (in the early stage) before the organic changes of the ganglion cells (middle stage). The ganglion cell body showed atrophy first (appeared after 2-3 weeks of onset), and the corresponding ganglion cell axon fiber (mRNFL) also showed atrophy, followed by the atrophy of the pRNFL (6-8 weeks after onset). Generally, the disease becomes stable after 3 months [16-18]. The time difference between atrophy of ganglion cell bodies and axons (mRNFL, pRNFL) might be related to the fact that the apoptosis of astrocytic-vascular sheath in the periphery of nerve fibers occurs after the atrophy of ganglion cell axons.

The concept and essence of subnormal eye: The latent state of the onset (clinically cured) or the non-onset optic nerve disease or the clinically cured fundus diseases are accompanied by optic nerve damage. Both types of disease had optic nerve damage-mGCC swelling and pRNFL swelling. And the optic disk was stained at the later FFA stage. Therefore, the subnormal eye is essentially considered to be the latent state (most of the cases) or early (very few) manifestation of the eye diseases, which is associated with mGCC swelling and atrophy (fundus diseases, optic neuropathy, and glaucoma). The latent sub-normal eye refers to no clinical symptoms, except for mGCC and pRNFL swelling and stained FFA optic disc during this period, with normal visual acuity and visual field. Therefore, it is considered as the latent period or preclinical period, which may last for long time or for life. Only few cases will have the onset based on this [19-24].

The visual field of trans-neuronal descending lesions at the posterior optic tract changes from hours to weeks, and the mGCC atrophy may occur from several months to several years. Nevertheless, the evolution and the characteristics of visual field, mGCC and RNFL in patients with transneuronal descending lesions at the posterior optic radiation require further investigation.

Conclusion

The distribution of ganglion cells is closely related to the visual field. Evaluation of morphological characteristics of the ganglion cells in the macular region of the eyes by SS-OCT can be used to locate the diseases in different parts of the optic pathway-related neuro-ophthalmology. The morphological analysis of the ganglion cells remained objective, and has the same value as the subjective positioning diagnosis of the visual field, but is considered to be superior to the visual field inspection. Since mGCC provides only 50% of the neural visual information, accurate visual field examination is still needed to improve the necessary supplement. The authors think that mGCC can not completely replace visual field examination at present, and further research on mGCC is still needed. Meanwhile, the positioning of optic pathway-related neuro-ophthalmologic diseases without changes in mGCC ring in the preclinical or latent stage still should be relied on the visual field and the MRI, and the precise positioning of the optic lesion at the posterior optic chiasm needs the combination of MRI and 90-degree field of view. Therefore, applying SSOCT examination to analyze the morphological changes in mGCC thickness map, and close combination of it with visual field and MRI examination can assist in mutual verification and bring out the best in each other, thus achieving the objective localization value in the diagnosis and treatment of optic pathway-related neuro-ophthalmic diseases.
