Staged approach for the management of atrial septal defect in the presence of a small left ventricle and suprasystemic pulmonary pressure

*Corresponding Author:

Dr Avraham Lorber
Pediatric Cardiology and Adults with Congenital Heart Disease, Rambam Health Care Campus, Meyer Children’s Hospital, Haifa, Israel.
Tel: 972-4-7772275
Fax: 972-4-7772175
E-mail: a_lorber@rambam.health.gov.il

This open-access article is distributed under the terms of the Creative Commons Attribution Non-Commercial License (CC BY-NC) (http://creativecommons.org/licenses/by-nc/4.0/), which permits reuse, distribution and reproduction of the article, provided that the original work is properly cited and the reuse is restricted to noncommercial purposes. For commercial reuse, contact support@pulsus.com

Keywords

Percutaneous closure of ostium secundum atrial septal defect (ASD) is a safe and effective alternative to surgery [1]. Complete occlusion of the defect is generally the desired procedural outcome. However, there are clinical and morphological circumstances in which acute complete occlusion may worsen hemodynamics because this atrial communication serves as a ‘pop-off’ valve [2]. Such situations have been previously described in the literature, and include children and adults with pulmonary arterial hypertension as well as closure of an ASD in elderly patients [3]. In these settings, the use of a fenestrated occluder device was demonstrated to be beneficial [3]. We present a case involving a young woman with an interesting cardiac morphology of a small left ventricle and suprasystemic pulmonary artery pressure. A staged approach, comprised of medical therapy followed by fenestrated device implantation, enabled gradual occlusion of the interatrial communication, leading to clinical and hemodynamic improvement.

Case Presentation

A previously healthy 29-year-old woman, who was diagnosed with an ASD when she was 14 years of age, became breathless on minor physical activity during pregnancy and remained decapacitated six months after spontaneous vaginal delivery of a healthy baby. She was referred to the authors as a tourist after several well-known cardiac and cardiothoracic services abroad elected not to intervene because of her unfavourable condition.

On echocardiography, her heart morphology revealed a very small left ventricle (LV) – left ventricular end diastolic diameter of only 26 mm (Figure 1A) – with mild to moderate nonrheumatic mitral valve regurgitation, a very large right ventricle (RV) and a 22 mm secundum ASD (Figure 1B), with reasonable rims morphologically amenable to percutaneous device occlusion. The shunt was mainly left to right; however, a small, narrow, systolic jet of tricuspid valve incompetence crossed the ASD from right to left. The tricuspid valve regurgitation jet velocity was 5 m/s, suggestive of systolic pulmonary artery pressure (PAp) of approximately 120 mmHg, while the systemic pressure was 95/65 mmHg. A very small pericardial effusion was also noted.

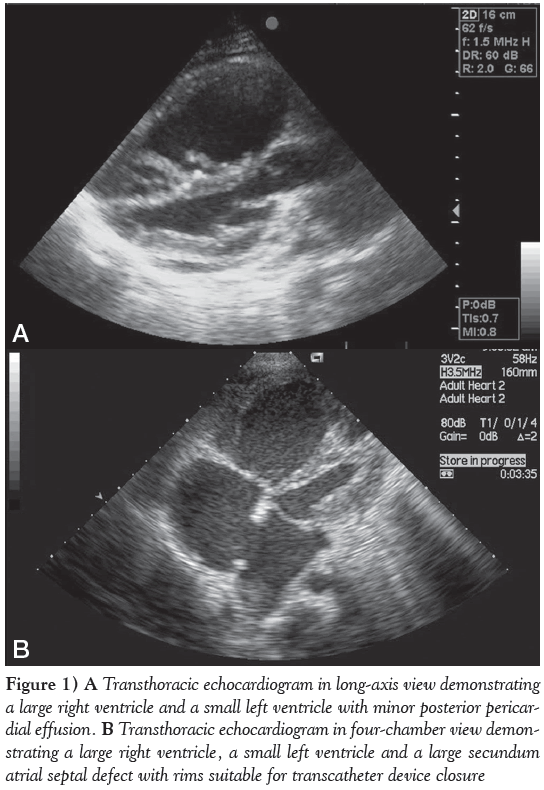

Figure 1: A Transthoracic echocardiogram in long-axis view demonstrating a large right ventricle and a small left ventricle with minor posterior pericardial effusion. B Transthoracic echocardiogram in four-chamber view demonstrating a large right ventricle, a small left ventricle and a large secundum atrial septal defect with rims suitable for transcatheter device closure

With regard to the possible etiology of increased PAp, there were no clinical or laboratory features of pulmonary embolism or a systemic illness such as Sjögren syndrome or lupus erythematosus, and the thrombophilia workup was negative. The patient was started on a combined drug therapy of bosentan 125 mg twice/day, sildenanfil 20 mg three times/day, bisoprolol 2.5 mg/day and furosemide 20 mg/day. The addition of bosentan aimed to decrease pulmonary resistance, thus decreasing the right-to-left shunt caused by the tricuspid valve jet through the ASD. Marked clinical and symptomatic improvements were documented soon thereafter and she returned home.

Being a tourist, the patient could return for a follow-up visit only one year after the initial evaluation. Following one year of treatment, her O₂ saturation on room air increased from 88% to 90% to 98%, and her subjective limited walking capability improved. Doppler interrogation of tricuspid valve regurgitation revealed a pressure gradient of 60 mmHg. After informed consent was obtained, a hemodynamic study was performed in the catheterization laboratory. The measured PAp was 78/28 mmHg (mean 44 mmHg); the pulmonary capillary wedge pressure was 12/7 mmHg (mean 10 mmHg); and the Qp:Qs ratio was 3:1. The interatrial septum measured 50 mm. The ASD stretched diameter was 24 mm, with a small inferior fenestration revealed by transesophageal echocardiography. Although the LV was small, its systolic function was good. There was a large, apex-forming RV with good function. A sizing balloon was inflated through the ASD, resulting in an increase in mean pulmonary capillary wedge pressure from 10 mmHg to 12 mmHg.

A decision was made to use a prefabricated 24 mm occluder device (Occlutech Figulla Flex ASD; H + H Maslanka GmbH, Germany), with a 7 mm fenestration that was customized and designed for this patient. The fabric of the device was cut to create the fenestration, offering a short-term potential vent mechanism in view of the small LV and modest left atrium. However, the nitinol mesh was left intact to allow for future endothelial proliferation and gradual closure of the fenestration (Figure 2). The prospect of spontaneous eventual closure of the fenestration at a later stage, obviating an additional intervention, was naturally sought. Immediately after the successful deployment of the closure device, the magnitude of the mitral valve regurgitation increased modestly from 1/4 to 2/4. In addition to bosentan and sildenanfil, acetylsalicylic acid 100 mg/day and ramipril 2.5 mg/day were given. On transthoracic echocardiogram (TTE) the day after the procedure, the LV was already slightly increased in size, and the Qp:Qs ratio was 1.5:1.

Figure 2: Intraprocedural transesophageal echocardiography illustrating the atrial septal defect occluder in situ. A left-to-right shunt is seen (in blue) across the 7 mm fenestration. There is also flow between the discs – immediately following device release

On clinical and TTE evaluation three months after the procedure, the patient was asymptomatic, with a tricuspid valve regurgitation flow velocity of 3 m/s and a systolic PAp estimated to be 45 mmHg. The LV increased up to 40 mm in size in end diastole, with normal function.

The patient returned for a follow-up two years after the procedure. Her physical examination was normal except for a soft, mid-systolic heart murmur. TTE demonstrated normal left heart chamber size (Figure 3A), normal ventricular function with no hypertrophy and no significant residual RV enlargement. The mitral regurgitation improved due to LV remodelling and became very mild. The configuration, motion and Doppler flows of the pulmonary, tricuspid and aortic valves were normal, with trivial physiological tricuspid regurgitation, with a systolic flow velocity of 2.7 m/s, compatible with a Doppler gradient of 29 mmHg, representing an upper normal or borderline elevation of PAp estimated to be 35 mmHg. The deployed closure device was optimally positioned with no residual shunt or interference with heart valve function (Figure 3B).

Figure 3: A Transthoracic echocardiogram in long-axis view two years after the procedure demonstrating normal left ventricle dimensions. B Transthoracic echocardiogram in four-chamber apical view (with slight apical foreshortening) two years after the procedure demonstrating reasonable left ventricle size and an optimal position of the atrial septal defect occluder

Discussion

ASD accounts for 10% to 17% of all congenital cardiac malformations [4]. It should be diagnosed and closed preferably during childhood. However, because the majority of children with ASD are asymptomatic, a substantial number of patients may present as symptomatic adults. Untreated ASD in adults leads to further RV dilation and failure due to progressive volume overload, and later pulmonary hypertension, which causes RV hypertrophy due to pressure overload [5]. Other complications of untreated ASD in adults may include arrhythmia (mostly atrial fibrillation), paradoxical emboli and stroke.

Ewert et al [6] reported on the potential complications of percutaneous closure of ASDs in elderly patients. They examined the hemodynamic changes that occurred after temporary balloon occlusion of the interatrial septum in 18 patients >60 years of age, seven of whom showed a marked increase in left atrial pressure. Restrictive physiology of the LV is more common in elderly patients than in children. In the study by Ewert et al [6], a patient who underwent closure with an ASD device developed pulmonary edema that required mechanical ventilation. The authors also questioned whether such a combination should be considered a contraindication for ASD closure.

Further studies have recommended preconditioning of the LV before ASD closure in adults >60 years of age [6-9]. The option of partial closure of the defect by deployment of a fenestrated device has also been presented [10]. Such devices were either preordered, custommade fenestrated devices or regular septal occluders with manually created fenestrations. Data are scarce regarding this technique in children or young adults. Kenny et al [11] reported a 46-year-old patient with ASD and left ventricular diastolic dysfunction due to hypertension, which was successfully treated with a fenestrated septal occluder (Helex, Gore Medical, USA).

Another group of patients that may require partial closure of an existing ASD are those with concurrent pulmonary hypertension. Older patients with an ASD and pulmonary hypertension may need the fenestration as a protective means for decompression of the RV in case of a pulmonary hypertensive crisis [10]. A balloon occlusion test should be performed for ASD occlusion tolerance and to enable hemodynamic evaluation before ASD closure [10].

Other patients who may need evaluation by balloon occlusion of ASD before closure include those with ischemic coronary disease and dilated cardiomyopathy [12].

Unless sutures are placed in the nitinol mesh after creating the fenestration, the memory properties of the nitinol will reshape the device to its original configuration, thus closing the fenestration after the acute recovery phase [13]. Potential risks for residual shunt through a fenestrated device are infective endocarditis and cerebrovascular events caused by paradoxical emboli, septic emboli or local formation of thrombi. Therefore, the eventual complete closure of the fenestration may be desirable [13]. This could be achieved by a fenestration small enough to close spontaneously by endothelial ingrowth or by implanting a second device for the closure of the remaining shunt at a later stage.

Our patient presented with several interrelated problems. There was a large ostium secundum ASD, a small LV with a modest left atrium, mild to moderate nonrheumatic mitral valve incompetence, an apex-forming very large RV and marked suprasystemic PAp. Each of these components had to be managed simultaneously because dismissing any of them carried the risk for heart failure. The low O2 saturation on room air and exertional dyspnea improved with medical therapy. The pulmonary pressures also gradually decreased with medical therapy and, following the interventional procedure, there was further reduction in pressure from suprasystemic to upper normal levels. The timing of the medical and interventional therapy was dependent on the availability of the patient, who is a foreign resident.

In view of the elevated PAp and small LV, a fenestrated device was fabricated. A single, large fenestration 7 mm in diameter was preferred over multiple smaller fenestrations to benefit from a longer period of venting mechanism, and to avoid premature complete occlusion by endothelization. It was assumed that the residual shunt would be of minor dimensions and a have a modest hemodynamic effect. However, it may have a significant role in the early postprocedural stage, allowing a temporary vent mechanism and avoiding left atrial pressure overload in the presence of a small LV. Using a custom-made device – cutting out the fenestration through the three layers of the fabric without interfering with the original metal mesh of the device – has, in fact, enabled effective short-term protection and gradual adaptation and eventual long-term spontaneous full closure by the ingrowth of endocardium, as expected.

The overall positive outcome of the patient was very reassuring. There was no residual shunt through the device. The LV increased in size, reaching normal dimensions. The RV, although still slightly enlarged, had good function with normalization of PAp.

Conclusion

Proper preprocedural conditioning and the prudent implantation of a fenestrated occluder device enabled successful, gradual closure of a large ASD in a patient who was at risk for cardiac failure.

Acknowledgement

The patient provided informed consent. All authors participated in the research, and have reviewed and agree with the content of the article.

Disclosures

The authors have no financial disclosures or conflicts of interest to declare.
