Journal of Environmental Geology

Virginia M Ayres

Michigan State University, USA

Nanowires and Nano-enhanced Properties: What Proofs are Definitive?

T

he implications of nanotechnology are wide-ranging and include medicine, military applications, computing, and

astronomy. There is therefore growing recognition of the importance of nurturing a community of scientists and

engineers with the necessary skill set(s) needed to establish definitive proof that nanostructures and/or nano- enhanced

properties are present. In the present discussion, the combinations required to establish two new discoveries in

semiconducting and metallic nanowires will be presented. The first investigation details our contributions to recognition

that gallium nitride nanowires, which are candidates for nanoelectronics and nanowire lasers, have interior structures that

will affect their performance. An initial key observation of new “biphasic” wurtzite/zinc-blende crystalline homostructure

with a sharp phase transition of 1-3 atomic layers emerged unexpectedly during a high resolution transmission electron

microscopy (HRTEM) investigation of nanowires grown at 850oC. Initial “proofs” came from electron diffraction and

cathodoluminescence studies that yielded unambiguous evidence for two different crystal structures and energy bandgaps,

but additional HRTEM of focused ion beam cross sections was required to replace “biphasic” with the correct “nanowires

within a nanowire” internal structure. Furthermore, the internal structure proved to be synthesis temperature-dependent,

with an abrupt change to pure wurtzite and unanticipated internal nanopipes at 1000oC. The nanopipes identified the

growth mechanism, as well as provided information for device designs. The second is an ongoing investigation of highly

crystalline nickel, cobalt and alloy nanowires, which have multiple magnetic and optical sensing, and also biomedical,

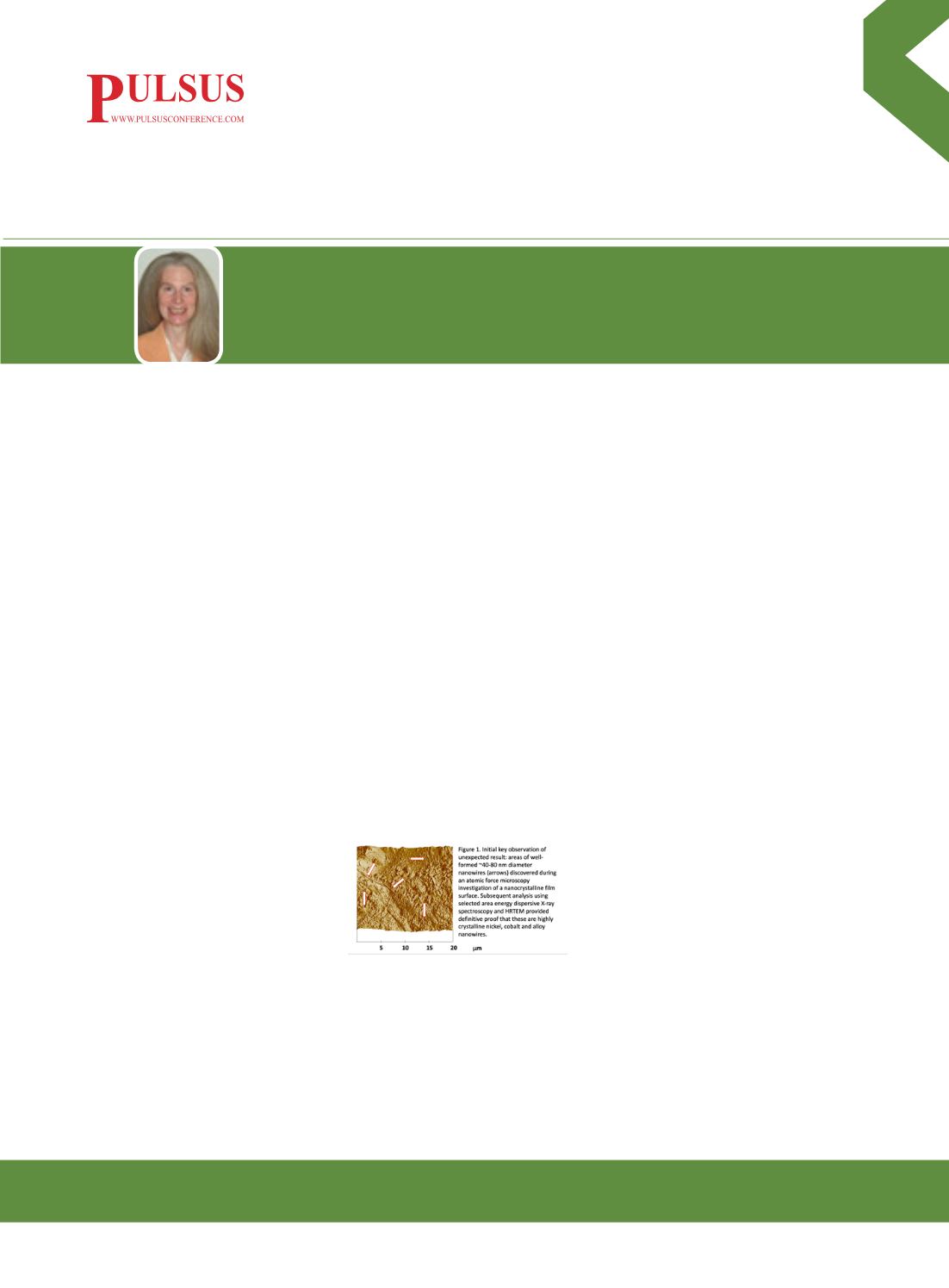

applications. Once again, there was an initial key observation of an unexpected result: areas of well-formed ~40-80 nm

nanowires discovered during an atomic force microscopy investigation of a nanocrystalline film surface. Extensive use of

recently available high resolution scanning electron microscopy with selected area energy dispersive X-ray spectroscopy

demonstrated that the new regime of high-speed turbulent flow electrodeposition coupled with a thin hydrocarbon layer

on the surface produced carbon nanowire-catalyst particles in metallic ion “gas” environment, while HRTEM confirmed

crystallinity that exceeds current state of the art in anodized template synthesis.
